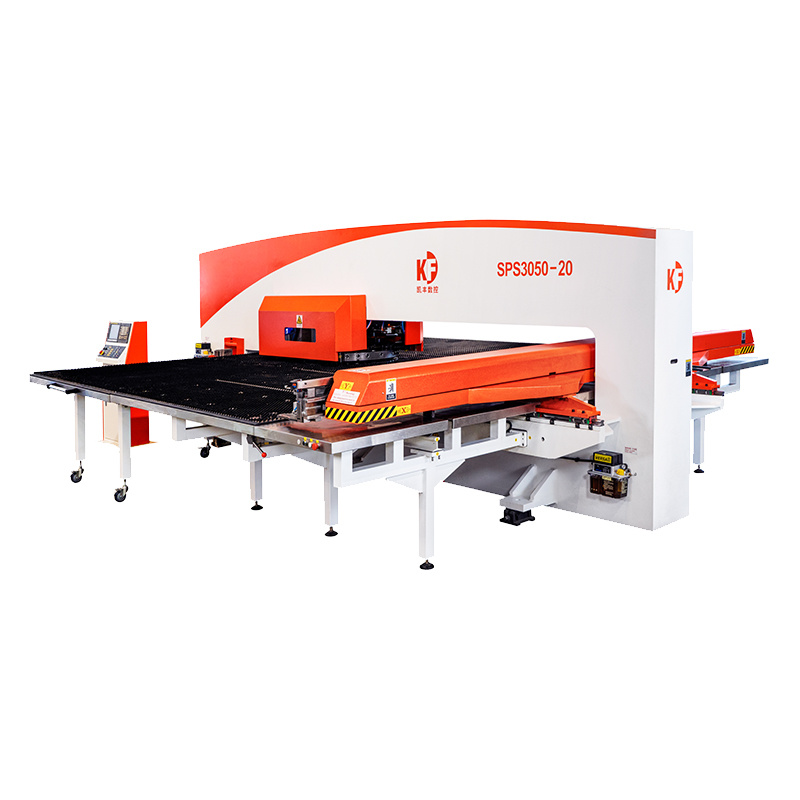

CNC Servo Turret Punch Press

1.Closed-type frame with advanced heat treatment, good rigidity.

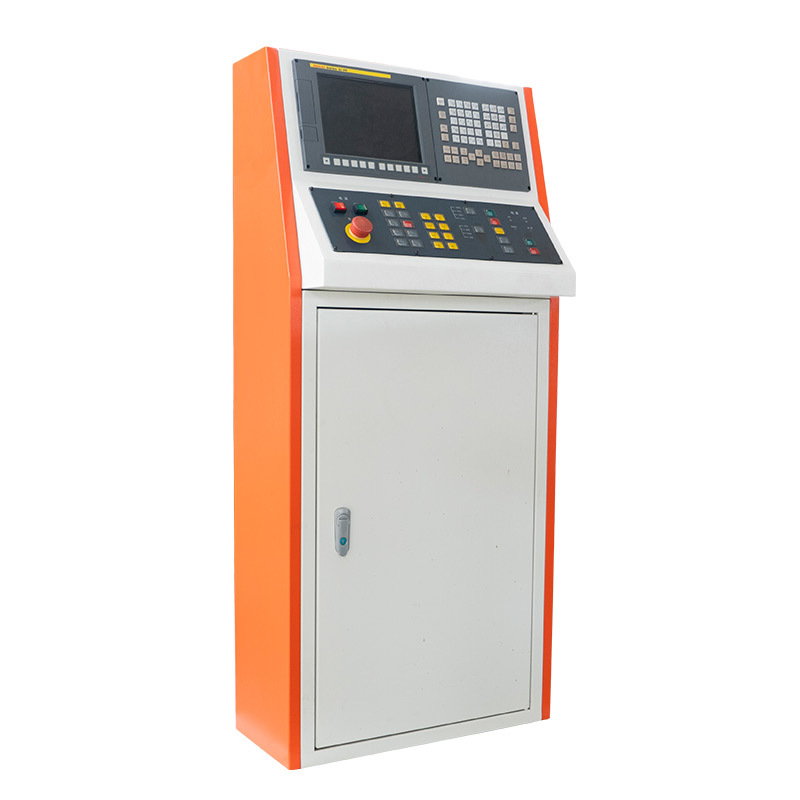

2.FANUC control system.

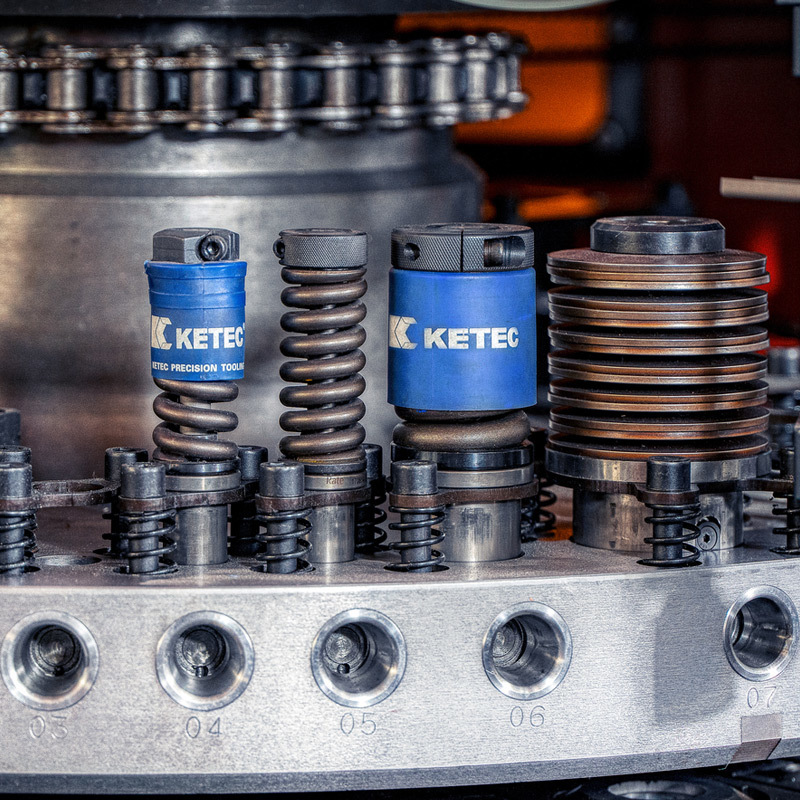

3.Thick turret with self-lubrication ductile structure.
4.Worm and gear no gap structure.
5.Multi-tasking: punching, forming, wheeling, rolling and tapping and so on.

Classification:

CNC Sheet-metal Processing Equipment

E-mail:

qianfei@jnkaifeng.com

Inquiry

E-mail

Key words:

CNC Sheet-metal Processing Equipment

Detailed Description

Main Technical Specifications

Specifications	Unit	SP3025	SPC3050	SP3050	SP3050D	SPS3050	SPS3050-16	SPS3050-20
Nominal Force	KN	300
Max. Punch Size	mm	Φ88.9				Φ114.3
Max. Sheet Size(one-reposition)	mm	1250×2500	1250×5000			1500×5000	1650×5000	2000×5000
Max. Sheet Thickness	mm	6
Max. Sheet Weight	kg	150
Punching Accuracy	mm	±0.1
Ram Stroke	mm	32
X/Y Traverse Length	mm	1250/1250	2500/1250				2500/1650	2500/2000
Max. Punching Frequency	min-1	1500	1200	1500	2000
Max. Positioning Speed	m/min	X=80 Y=80	X=80 Y=64
Turret Rotation Speed	r/min	30
Tool Stations	set	32	24	32		28/32/52
Floating Clamps	set	2	3
CNC System		FANUC	BECHOFF/OMRON	FANUC
Monitor		10.4inches color	15 inches color	10.4 inches color
Machine Dimensions(Approx)	mm	5000×2736×2250	5000×5260×2250			5500×5260×2250	5800×5260×2500	6500×5260×2500
Machine Weight（Approx）	T	14	15	16	16	17	18	20
